The Nuclear Fuel Cycle

Part V of The Nuclear Fuel Cycle: A Complete Primer

Chapters 17–21 step outside the mine-to-reactor-to-waste sequence to examine five supply chains that the standard fuel-cycle diagram leaves out: helium, isotopes, critical materials, the nuclear industrial base and the maritime frontier. The Part’s premise is that a power plant is the hub of a larger system, and that each adjacency is an enabling condition without which reactors cannot be built, fueled, operated, staffed or sustained at scale. The chapters move from an element made by uranium’s own decay, through the products and inputs of the neutron flux, to the people who build plants, and then to sea. The facts that anchor the Part are a 2024 sale that left the United States with no strategic helium reserve, a Mo-99 supply that cannot be stockpiled, materials markets with no published prices, the contrast between Vogtle and Darlington, and a naval HEU stockpile projected to run out around 2060.

Chapter 17 — Helium

Radiogenic origin. Helium is the second most abundant element in the universe and one of the scarcest on Earth. At atomic mass four, it escapes Earth’s gravity from the upper atmosphere. Recoverable helium is radiogenic, produced by the alpha decay of uranium and thorium in crustal rocks. An alpha particle is a helium-4 (He-4) nucleus, and once it captures electrons it is a helium atom. Over millions of years it collects in porous rock, often alongside natural gas, beneath impermeable cap rock. Two consequences follow. Helium is non-renewable on human timescales, because vented helium leaves the planet. And the geology that produces uranium deposits also tends to produce helium, though the book notes that the correlation runs through shared basin history and sealing geology.

No substitute. On the Kelvin scale used in cryogenics, helium boils at 4.2 K (about −269 °C), the lowest boiling point of any substance. That makes it the only practical coolant for superconducting magnets. A clinical MRI runs at 1.5–3 Tesla, roughly 30,000 times Earth’s field, and research-grade 7 Tesla instruments reach up to 140,000 times. About 40,000 MRI scanners operate worldwide, and each needs periodic helium replenishment. Chip fabrication uses helium to cool wafers during ion implantation, carry deposition gases, leak-test vacuum systems and blanket crystal growth, and that demand is accelerating with the AI-driven expansion of chip fabrication. Superconducting qubits need temperatures below 15 millikelvin in dilution refrigerators, which circulate a mix of helium-3 (He-3) and helium-4. Helium-3 comes mainly from tritium decay in weapons programs under separate DOE authority, so its availability is effectively fixed by decisions outside the civilian sectors. The chapter’s boxed conclusion: “At the temperatures required, helium has no substitute.”

The nuclear connection. The fuel cycle already uses helium as an inert cover gas in UF₆ handling, as a leak-detection medium in enrichment cascades, and as backfill in every finished fuel rod, where it improves heat conduction between the pellet stack and the zirconium cladding. The larger link is reactor design. High-temperature gas-cooled reactors (HTGRs) use helium as primary coolant. It is chemically inert and does not become activated in ways that complicate maintenance. Its low neutron absorption preserves neutron economy, and it suits outlet temperatures of 700–950 °C, hot enough for hydrogen production, chemical synthesis and desalination. HTGR designs are in development and construction in the United States, China and South Africa, so a helium price shock would reach reactor operating costs. The chapter adds that data centers running AI inference workloads and continuous-process fabs are the load profiles nuclear baseload suits best.

Supply geography. Five sources supply most of the world: the United States, Qatar, Russia, Algeria and Australia. Qatar and Russia have historically supplied about half of global liquid helium. For nearly a century the United States held the world’s largest strategic reserve at Cliffside Field in the Texas Panhandle, which once supplied about 35% of global production. The Helium Stewardship Act of 2013 put the Federal Helium Reserve on a mandatory disposal path. On June 27, 2024, the Bureau of Land Management completed the sale of the Federal Helium System, established under the Helium Act of 1925, to Messer for about $460 million. The United States no longer holds a strategic helium reserve.

Ras Laffan, 2026. In early 2026, Ras Laffan in Qatar, the world’s largest helium complex with about 36% of global liquid helium supply, suffered a significant production disruption. Industry estimates put the loss at about 17% of the facility’s output, roughly 5–6% of world supply. It landed on a tight market during the semiconductor industry’s fastest expansion, with no reserve, stockpile or coordinated response to draw on. Helium was on the 2018 USGS critical minerals list. It was excluded at the 2022 revision and again from the 2025 list, which assessed it as insufficiently vulnerable to import disruption.

Price signal. Helium is not exchange-traded and has no published daily spot price. Prices are set in bilateral long-term contracts between producers and the industrial gas companies Air Products, Linde, Air Liquide and Messer. Spot buyers pay substantial premiums, shortages fall hardest on buyers without long-term contracts, and price signals reach the public with a lag. In the shortages of 2011–2013 and 2019–2020, spot prices rose above $1,000 per thousand cubic feet (MCF). Analyst estimates put contracted supply at about $380 per MCF in the Q2 2026 tightness after Ras Laffan, below earlier peaks but well above the preceding decade.

What the chapter establishes. Helium is non-renewable, physically non-substitutable as a cryogenic coolant and non-recoverable once released. Its supply is concentrated, its market is opaque, and its public buffer is gone. For the nuclear sector it already appears in fuel fabrication, enrichment leak detection and UF₆ handling. As HTGRs expand, helium’s role moves closer to the reactor itself.

Chapter 18 — Isotopes

A multi-product reactor. Every operating reactor is both a power plant and an isotope factory. The chain reaction runs on a controlled neutron flux, and neutrons that strike deliberately inserted targets turn them into isotopes that do not exist in nature in usable quantities. Canada’s NRU reactor, dedicated mainly to medical isotopes, earned more from isotopes than its electricity was worth before its closure. Reactor-produced medical isotopes are worth billions of dollars a year, and therapeutic radiopharmaceuticals, a category that barely existed fifteen years ago, are growing rapidly. The neutron spectrum sets the product list: thermal and fast reactors make different portfolios, and fast reactors open access to isotopes thermal reactors cannot efficiently produce.

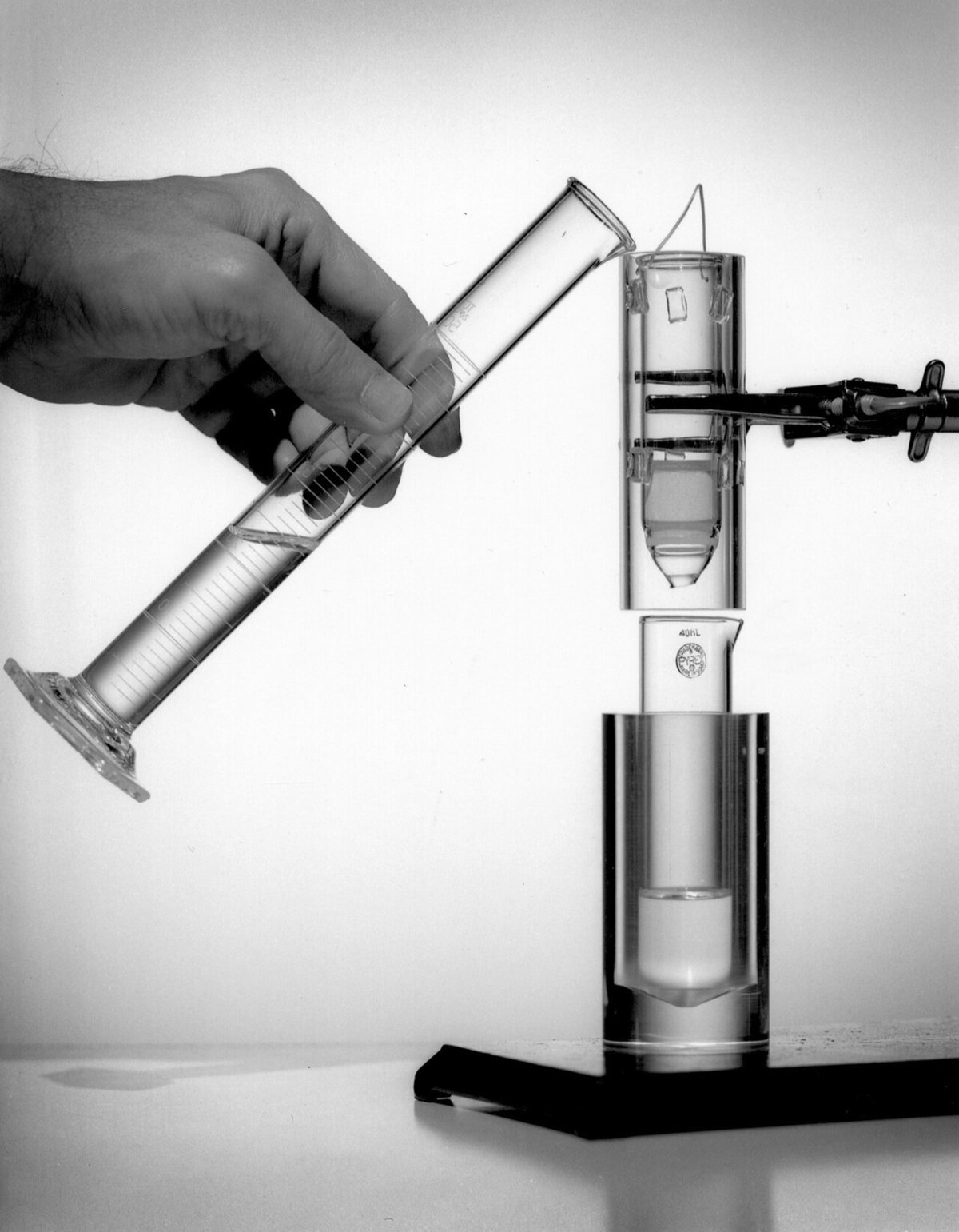

Tc-99m and Mo-99. Technetium-99m is the most important isotope in nuclear medicine. The “m” marks a metastable state that releases a gamma ray suitable for imaging. Tc-99m is used in about 80% of diagnostic nuclear medicine procedures worldwide and in about 40,000 procedures a day in the United States. It comes from the decay of molybdenum-99, a fission product with a cumulative yield of about 6% from U-235. Enriched uranium targets are irradiated in research reactors, and the Mo-99 is chemically extracted and loaded onto an alumina column in a generator. The generator ships to a radiopharmacy, where elution with a saline wash draws off the Tc-99m that has built up.

No buffer. Mo-99 has a half-life of about 66 hours (2.75 days) and Tc-99m about 6 hours, so Mo-99 cannot be meaningfully stockpiled. The chain runs continuously, and a reactor outage reaches hospital cancellations within days. About 95% of Mo-99 comes from a few aging research reactors, primarily in Belgium, the Netherlands, Australia, Poland, the Czech Republic and South Africa. NRU stopped Mo-99 production in 2016 and shut down in 2018. Unplanned outages, especially when they coincide with maintenance elsewhere, can cut world supply by up to 50% within weeks. That happened in 2009, 2012 and late 2024, when an unexpected repair at the High Flux Reactor in Petten coincided with planned outages at Belgium’s BR-2 and Poland’s MARIA. The United States has no domestic Mo-99 production. NorthStar Medical Radioisotopes stopped in October 2023. SHINE Technologies is building an accelerator-driven facility with $32 million in NNSA support, targeted to supply up to three-quarters of US demand.

Therapeutic isotopes. Diagnostic isotopes make disease visible, and therapeutic ones treat it. Lutetium-177, made by irradiating lutetium-176, is approved for certain neuroendocrine tumors and prostate cancer. yttrium-90 is used in brachytherapy and liver cancer treatment, and iodine-131 remains the standard of care for thyroid cancer and hyperthyroidism. Actinium-225, in clinical development for targeted alpha therapy, is made mainly by “milking” thorium-229 generators. That Th-229 derives from finite Cold War stocks of uranium-233, and reactor production from radium-226 has not reached commercial scale. The book calls the actinium gap one of the most acute near-term constraints in the radiopharmaceutical pipeline.

Cobalt-60. The central industrial isotope is made by irradiating cobalt-59 slugs in reactor cores. Co-60 emits gamma rays at 1.17 and 1.33 MeV, and the book notes that 1 MeV is roughly 500,000 times the energy of a visible-light photon. Its largest use is gamma sterilization of single-use medical devices. It is also used for food irradiation and in sealed sources for radiography of pipeline welds, aircraft structures and refinery equipment, which ties reactors to the quality assurance infrastructure of several industries. CANDU heavy-water reactor (HWR)s run by Bruce Power and Ontario Power Generation are major producers. Replacement capacity for the aging producer fleet has not been systematically developed.

Separated isotopes: silicon-28 and lithium-7. Silicon-28 enters the system through isotope separation rather than irradiation. Natural silicon is 92.2% Si-28, 4.7% Si-29 and 3.1% Si-30. Si-28 has zero nuclear spin, while Si-29’s spin of one-half produces a stochastic magnetic field that disrupts qubit states within microseconds. With Si-29 below 0.01%, coherence extends to seconds, an improvement of about six orders of magnitude. Research from 2022–2023 reported nuclear spin coherence above 39 minutes at room temperature and 3 hours under cryogenic conditions. Production uses gas centrifuge separation of SiF₄, the same principle as uranium enrichment. Capacity at 99.99% or above is limited, with lead times of months. Lithium-7 (about 92.5% of natural lithium) is separated by chemical exchange for PWR coolant chemistry, because Li-6 would make tritium. Russia and China dominate that supply.

Markets and dedicated reactors. Isotope markets resemble enrichment and conversion: no published prices, no exchanges, and chains of long-term bilateral contracts from hospital to processor to reactor operator. Because of the half-life asymmetry, disruptions move faster than supply chains can respond. A small group of projects now makes isotope production a primary mission. Atomic Alchemy, acquired by Oklo in 2024, is developing two facilities under DOE’s Reactor Pilot Program. The Groves Isotopes Test Reactor in Texas targets first criticality in 2026 or 2027. The Versatile Isotope Production Reactor (VIPR), a 15-megawatt-thermal light-water design at Idaho National Laboratory, has begun site characterization. Oklo’s fast-neutron Aurora reactors at INL are the fast-spectrum complement, relevant to actinide therapeutics and to plutonium-238 for space radioisotope thermoelectric generators.

Chapter 19 — Critical Materials

What makes a material critical. Chapter 7 had noted that zirconium cladding has no viable commercial substitute and that nuclear-grade supply is concentrated. Chapter 19 develops that observation. The book defines criticality as the intersection of functional irreplaceability and supply concentration. Neither alone is enough: oxygen is irreplaceable, and many concentrated commodities pose no strategic risk. Six materials meet the test: zirconium, hafnium, lithium-7, tungsten, graphite and beryllium. For each, the chapter asks what property makes the material necessary, why substitution fails, and where supply concentrates. It then turns to the DFARS ban that takes effect on January 1, 2027.

Zirconium cladding. Every fuel rod in every light-water reactor is clad in zirconium alloy, Zircaloy or a newer vendor-proprietary variant. No other commercial material combines low neutron absorption, strength at temperature, corrosion resistance in hot pressurized water and compatibility with uranium dioxide over a three-to-five-year life. Low absorption is the governing property. Steel, aluminum and titanium absorb far more neutrons, and a more absorbent cladding would require higher enrichment in every reactor that used it. Nuclear-grade zirconium sponge is produced mainly in Russia, France, the United States and China, and Russia’s TVEL supplies substantial quantities. Sanctions after the Ukraine conflict have drawn attention to Western fabricators’ reliance on Russian-origin zirconium. Qualifying a new alloy takes years of in-reactor testing and NRC approval.

Hafnium, the twin product. Natural zirconium contains 1–3% hafnium by mass, and hafnium absorbs thermal neutrons about 100 times more strongly than zirconium. Nuclear-grade zirconium must therefore be essentially hafnium-free, which requires a demanding chemical separation performed at few facilities. The extracted hafnium becomes control-rod material, valued for its compact geometry and long life, particularly in space-constrained naval designs. One process yields two critical materials, so any tightening in zirconium supply propagates directly into hafnium.

Lithium-7. PWRs add lithium hydroxide to keep coolant alkaline and limit corrosion of internals, cladding and steam generator tubing. The lithium must be lithium-7. Lithium-6 absorbs thermal neutrons and produces tritium, the reaction Cold War weapons programs exploited when they separated Li-6 for thermonuclear designs. Russia and China dominate separated Li-7. Oak Ridge produced lithium isotope products as a weapons-program byproduct but stopped decades ago, so US PWRs depend on foreign supply. A sustained interruption would affect every PWR in the US fleet, yet lithium-7 is absent from public discussion of nuclear fuel inputs.

Tungsten and the 2027 deadline. Tungsten has the highest melting point of any metal, 3,422 °C. It is used in gamma shielding, collimators, some control rod assemblies and fusion plasma-facing components. China controls more than 80% of mine production and most capacity for ammonium paratungstate (APT), the intermediate from which tungsten metal and carbide are made. The United States has had no tungsten mine since 2015. A 25% US tariff on Chinese tungsten took effect in December 2024, and in February 2025 China added tungsten to its export control list. APT reached about $2,250 per metric ton unit by early 2026, roughly six times the pre-control level. From January 1, 2027, 10 U.S.C. §4872 and DFARS 252.225-7052 bar defense contractors from buying covered tungsten materials if any production stage occurred in China, Russia, Iran or North Korea. Traceability reaches back to the mine. Competition for qualifying supply will arrive just as nuclear construction expands.

Graphite and beryllium. nuclear-grade graphite is the moderator and structural material of the UK’s advanced gas-cooled reactors, the RBMK and the HTGRs central to advanced programs. It also serves as a research-reactor reflector and in TRISO particle coatings. It must meet limits on boron and other absorbers and on microstructure under irradiation, and few manufacturers qualify. Production is concentrated in the United States, Japan and, increasingly, China. A single large HTGR core may hold hundreds of metric tons. The book expects graphite qualification to become a bottleneck that gets less policy attention than uranium while being equally capable of constraining deployment. Beryllium is valued as a reflector and moderator partly because Be-9 releases two neutrons when struck by a sufficiently energetic neutron. It is the exception: the United States produces most of the world’s supply, with Kazakhstan second. Its constraint is the toxicity of beryllium powders, which has limited the facilities willing to process it.

Opaque markets and the revival constraint. There are no daily prices for nuclear-grade zirconium sponge, no futures market for lithium-7 and no benchmark for hafnium. Bilateral contracts and multi-year supplier qualification keep prices hidden, so tightening supply produces no visible escalation until a disruption is already affecting operations. Tungsten’s 2025 price jump is the exception. A strategy that diversifies uranium and builds Western enrichment while depending on Russian lithium-7, Chinese nuclear-grade graphite and an unexpanded zirconium separation base can still be disrupted at a different point. The book’s conclusion: “The materials that make a reactor safe and operable are as strategically significant as the fuel that powers it.” The atrophy of the US industrial base included its domestic materials chain, and rebuilding one without the other leaves a weak point.

Chapter 20 — Nuclear Industrial Base

The system behind the plant. A nuclear plant is the visible product of an industrial system that must exist before the first concrete is poured. That system includes design and licensing firms, nuclear-qualified specialty contractors, and manufacturers certified to ASME nuclear code standards for pressure vessels, steam generators, coolant pumps and piping. It also includes nuclear-qualified welders, pipefitters and ironworkers, health physicists and quality auditors, and NRC staff. The United States built this system in the 1960s and 1970s. It was dismantled by two decades of low activity between the early 1980s and the mid-2000s: facilities closed, certifications lapsed, tooling was scrapped, and a generation retired without successors. In the book’s words, “Knowledge that retires with a generation of practitioners cannot be recovered from a manual.”

Physical atrophy. The book traces this supply chain atrophy through specific capabilities. By the time Vogtle Units 3 and 4 entered construction in 2009, US heavy forging capacity had contracted so far that the AP1000 reactor vessels were made in South Korea and Japan. Nuclear-grade concrete requires documentation of every batch and test samples held for decades. Nuclear welding requires qualifications under ASME Section IX, kept current through documented practice, along with fluency in weld maps, travelers and inspection hold points. In 2009 the country had fewer qualified nuclear construction welders than Vogtle needed, and workers were trained mid-project. Many holders of the ASME N-stamp let their certifications lapse during the low-activity years, and rebuilding a certified supplier base is itself a multi-year process.

The human dimension. ORISE data show that US bachelor’s degrees in nuclear engineering fell 25% between 2012 and 2022, and the class of 2022 produced 454 nuclear engineers. Seventeen percent of the workforce is over 55. DOE estimates the workforce must grow from about 68,000 to more than 200,000 to support planned expansion. Codes and drawings preserve formal requirements; judgment about sequencing, documentation and weld supervision passes by working beside experienced practitioners. The shortage spans every trade and profession the system needs at once. The boxed figure: fewer than 5,000 US welders hold ASME Section IX nuclear certifications.

Vogtle. The only new US reactors in more than thirty years are the best-documented case of what atrophy costs. The estimate approved by the Georgia Public Service Commission in 2009 put Georgia Power’s share at about $14 billion, with about seven years of construction. Unit 3 entered commercial operation in July 2023 and Unit 4 in April 2024. Total cost was about $35 billion across all four owners, more than double the estimate, and the schedule ran eight years over. The book lists the causes carefully: Westinghouse’s 2017 bankruptcy, first-of-a-kind design questions resolved during construction, and management failures. Workforce problems were also documented in Commission proceedings, including absenteeism, turnover and productivity shortfalls. Hot functional testing took 94 days on Unit 3 and 42 on Unit 4, carried out by the same workforce. The book reads this as showing both the depth of the deficit and how fast a practiced workforce recovers.

Darlington. The contrast is Ontario Power Generation’s refurbishment of Darlington, a four-unit CANDU station built in 1990–1993. After about 30 years of operation it needed new fuel channels, feeder pipes and pressure tubes to run another 30. OPG began in 2016 and treated knowledge management as a project discipline. It built a full-scale reactor mock-up for training and captured lessons systematically. Unit 2 returned to service in June 2020, Unit 3 in July 2023 and Unit 1 in November 2024. Unit 4 finished in February 2026 in 968 days, the shortest of the four, four months ahead of schedule and CAD$150 million under budget. The final count was about 8,000 lessons learned, available to Pickering, the Darlington BWRX-300 and later projects. The book stresses that the two projects differ in scope and design. Its lesson is that the state of the workforce at the start of a project is as determinative as the design or the regulatory environment.

The regulator. The industrial base and the NRC depend on each other. Part 53, the technology-neutral advanced reactor framework finalized in early 2026, and the proposed Part 57 for microreactors require staff versed in non-LWR thermal hydraulics, advanced fuels and digital instrumentation and control. At a May 2026 Senate Environment and Public Works Committee hearing, Commissioner Bradley Crowell reported that the NRC had lost 510 employees in the preceding sixteen months, many of them senior, while adding only 59. The ADVANCE Act of 2024 authorized flexible hiring for up to 210 additional positions, but the agency still competes against higher private-sector salaries.

Rebuilding. The constraints form an interdependent set: the workforce pipeline, certified suppliers, NRC staff, heavy forging and institutional knowledge. Progress in any one is limited by the others. Darlington shows the set can be managed when knowledge is preserved continuously, which Ontario’s sector did and the US sector did not. Recovery has begun. Enrollments are rising from the 2022 trough, and Vogtle is now a documented record. At current pipeline throughput, though, the book judges the workforce gap not closeable in the near term, and calls acknowledging that constraint the precondition for addressing it.

Chapter 21 — Maritime Frontier

The largest non-civil nuclear economy. naval nuclear propulsion has run continuously since USS Nautilus got underway on nuclear power in January 1955. The US Navy has operated about 160 nuclear-powered vessels, and naval programs in the United States, United Kingdom, France, Russia, China and India have accumulated thousands of reactor-years. The naval economy differs from commercial power in four ways. US and UK naval fuel is 93–97% U-235, against 3–5% in light-water power reactors. The designs put compactness, power density and endurance first. The reactors sit outside NRC jurisdiction, under the Department of Defense and the DOE’s Naval Reactors Program. And reactor designs, fuel specifications and performance data are classified. The book argues that these same differences make the naval program directly relevant to the commercial sector.

What the naval program sustains. Newport News Shipbuilding in Virginia and General Dynamics’ Electric Boat in Groton, Connecticut kept ASME code expertise, quality systems, radiation protection and heavy manufacturing alive because naval orders continued. Moving workers from naval to commercial qualifications still requires bridging steps. The Naval Nuclear Power School in Goose Creek, South Carolina, with prototype training at the Kenneth A. Kesselring Site in West Milton, New York, and Naval Station Charleston, produces several hundred nuclear-trained personnel a year. Many later join the commercial workforce. The safety culture Admiral Hyman Rickover established has produced seventy years without a reactor accident. It was the direct model for commercial quality systems, and the NRC’s 10 CFR 50 Appendix B provisions drew explicitly on naval practice.

The HEU question. HEU fuel has about five times the energy density of LEU at power-reactor concentrations. A Virginia-class submarine can therefore run its 33-year design life without refueling, where commercial-grade LEU would mean refueling every one to three years. The Navy has told Congress that LEU fuel would provide no military benefit. The United States halted new enrichment to weapons-grade levels in 1992, and naval fuel now comes from down-blended Cold War stockpiles. The United Kingdom stopped producing HEU in 1963 and has relied on US supply under the 1958 Mutual Defense Agreement. At current consumption, published non-proliferation analyses project the excess stockpile to run out around 2060. The choice then is to restart HEU production, a capability unused for over thirty years, or convert to LEU, which the Navy estimates would take 20–30 years and about $25 billion. HEU needs enrichment well above 90%, far beyond the 10–20% HALEU range, so the decision will shape domestic enrichment investment for decades.

AUKUS. Announced in 2021, AUKUS transfers nuclear submarine propulsion technology from the United States and United Kingdom to Australia. The book calls it the most significant transfer of naval nuclear technology to a non-nuclear-weapons state in the history of the NPT. Naval fuel can be withheld from IAEA safeguards under a military-use exemption that weapons states have used to shield naval HEU. Australia’s planned three to five boats would involve an estimated four metric tons of HEU over the program’s life, the weapons-equivalent of about 160–200 warheads. The concern the book names is precedent. Iran cited AUKUS in 2021 to justify exploring naval HEU, and Brazil’s choice of LEU-fueled submarines faces pressure. For the fuel cycle, the US commitment to supply the fuel adds HEU demand while the stockpile is drawn down, and public enrichment planning does not yet reflect it.

Commercial shipping, then and now. The NS Savannah, the first US nuclear-powered merchant ship, operated from 1962 to 1970 and covered over 450,000 miles safely. Port restrictions, specialized crews and 1960s fossil-fuel economics made it uncompetitive, and it became a museum ship. Today International Maritime Organization rules require net-zero shipping emissions by 2050. Shipping burns about 300 million metric tons of heavy fuel oil a year and produces about 2.5% of global greenhouse gas emissions. LNG, methanol, ammonia, hydrogen and batteries all face limits on long-haul routes. A large container ship needs 50–80 MW of propulsion power, within the range of small modular reactor designs, and a lifetime-core design could eliminate refueling.

Proof and barriers. Russia’s Akademik Lomonosov, moored at Pevek in Chukotka, has generated commercial electricity and heat since December 2019. Its two KLT-40S reactors, about 35 MWe each, derive from icebreaker propulsion reactors. It shows that the step from naval propulsion to commercial power generation is physically achievable. The remaining barriers are not physics problems: licensed merchant designs, civilian crews, port access, liability, safeguards, emergency planning, insurance, fuel supply and decommissioning, none resolved internationally. In May 2026 MARAD (Maritime Administration) issued an RFI (Request for Information) on SMRs for commercial shipping, its first formal engagement with the question as a system transition. Fuel choice carries consequences: LEU loads the civil fuel cycle, HALEU competes with advanced reactors for constrained supply, and HEU raises safeguards issues. The book’s conclusion: “Commercial deployment would require a civilian nuclear maritime regime that does not yet exist.”

Supporting appendices

• Appendix X — Industry and Landscape. Five Adjacency Map categories match this Part. Medical Isotopes and Radiopharmaceuticals puts Mo-99/Tc-99m at about 40 million procedures a year worldwide. Industrial Isotopes centers on Co-60 from CANDU cobalt-59 targets. Specialized Nuclear Materials covers zirconium, hafnium, boron, graphite, helium, lithium and beryllium. Specialized Construction and Skilled Labor ties N-stamp, welding and forging atrophy to the Vogtle overruns. Naval Propulsion and Defense Nuclear covers the supply chains shared with civil power, and AUKUS.
• Appendix XI — Atomic Structure. The Isotopes section explains why isotopes are chemically identical, so that separation exploits mass difference alone, and gives the notation for Mo-99 and Tc-99m, whose six-hour half-life appears in its reference list.
• Appendix XII — Physics and Mathematics. “Isotope Production Rate” derives saturation activity, N_sat = Φσ_cN_target/λ, which it calls the quantitative basis for Chapter 18. A worked Mo-99 example (Mo-98 target, σ_c ≈ 0.13 b, t½ = 66 hours, Φ = 10¹⁴ n cm⁻² s⁻¹) gives 4.45 × 10⁻⁶ per atom and explains why high-flux research reactors such as HFR Petten, BR2 and SAFARI-1 carry production. The capture cross-sections behind Chapter 19 are listed: zirconium ≈ 0.011 b, graphite ≈ 0.0035 b, boron-10 ≈ 3,840 b. The alpha-decay section (U-238 → Th-234 + ⁴He + 4.27 MeV) underlies Chapter 17’s radiogenic helium, and the HTGR worked example (750 °C outlet, Carnot 69.9%, expected 45–50%) bears on helium-cooled designs.
• Appendix VIII — Glossary of Terms gives working definitions, with the chapter of first use, for every term marked here. Appendix IX — Regulatory and Policy Timeline places the Vogtle milestones, the ADVANCE Act (July 9, 2024) and Part 53 (effective April 29, 2026) in sequence, along with the NPT framework behind the AUKUS safeguards debate.

Longer technical notes and Top Stories tagged to Part V will appear on this page as they are published.
